Chapter 14 · Actors

Chapter 13 showed how to start fibers and coordinate them with a nursery. That solves internal concurrency: many units of work inside the same program, spread across the machine’s cores.

For many cases that structure is enough. But there’s a pattern that pure fibers leave awkward, and it’s worth naming before the syntax. I borrowed it from Erlang almost unchanged, because after staring at it for a while I found nothing worth improving.

An actor is a process; a fiber is a computation

Imagine two different tasks:

• Task A: parse a large file and return the list of errors found. Starts, works, ends, returns a value.
• Task B: maintain an in-memory cache that answers queries (get(key) and put(key, value)). Starts, stays alive, answers messages for as long as the program lives, ends when someone asks it to stop.

Both are concurrent in the sense that the main program can keep working while they happen. But their shape is very different.

Task A is a computation: it has an input, produces an output, ends. That’s a fiber. You create it with spawn, you wait for its result with await, you receive the value. Once the result is returned, the fiber ceases to exist.

let f = spawn.spawn(() => parse_file("input.txt"))
# ... other work in parallel ...
let errors = spawn.await(f)   # one value, and you're done

Task B is a live process: it has no single return value, just an endless sequence of interactions. For that, kaikai borrows the actor model, drawn in spirit from Erlang and BEAM.

let cache = spawn_actor(() => cache_loop())
Actor.send(cache, Put("user:42", "ada"))
Actor.send(cache, Put("user:43", "turing"))
match Actor.receive() {
  Found(v) -> ...
  Missing  -> ...
}

An actor is a fiber with a typed mailbox on top. The fiber is the substrate (a cooperative thread of execution); the mailbox is what makes it an actor (a channel where messages pile up for the fiber to process in order).

Side by side:

Aspect	Fiber	Actor
What is it?	Unit of execution	Fiber with typed mailbox
Communication	One return value via await	Messages via send/receive
Lifecycle	Start, compute, return, die	Start, loop processing, die when it decides
How to create	spawn.spawn or n.spawn	spawn_actor
How you talk to it	await to get its T	send any number of times
When to pick	Discrete concurrent computation	Long-lived service, internal state, queries

The mental rule:

• Does the task end with a value the parent needs? Fiber.
• Does the task live and respond to messages from several clients? Actor.

Both models are concurrent and parallel: the runtime spreads fibers and actors across as many OS threads as the machine has cores (chapter 13 §13.8 Concurrency and parallelism). An actor running on another thread changes nothing in this chapter: its mailbox is still processed serially, one message at a time, and messages crossing a thread boundary are copied. No actor observes shared memory, whether you run on one thread or thirty-two.

Cases where an actor is natural: a cache server, a connection controller, a process supervisor, a notification router, a task queue, a logger actor. Cases where a fiber suffices: an expensive computation the parent wants to run concurrently with other work, a with_timeout measuring how long something takes, a concurrent map over a list of IO.

Actors are not language primitives

One more thing to pin down before the syntax: in kaikai, actors aren’t a core construct. They’re a layer built with algebraic effects: the Actor[Msg] effect declares the operations (self, send, receive); the stdlib provides functions like with_mailbox and spawn_actor that install the Actor[Msg] handler on top of an ordinary fiber.

It’s the same principle as nursery from chapter 13: the language core has only effects; the use patterns (fibers, actors, supervision) appear in libraries any reader can read. If after this chapter you wonder how spawn_actor works inside, the answer is a spawn.spawn plus a handle ... with Actor[Msg].

14.1 Actor[Msg]: the effect

An actor is a fiber inside a handle ... with Actor[Msg] that grants it access to three operations. The effect is declared in the stdlib:

# Declared in stdlib/actor.kai, accessible via `import actor`.
pub effect Actor[Msg] {
  self()                         : Pid[Msg]
  send(pid: Pid[Msg], msg: Msg)  : Unit / Cancel
  receive()                      : Msg / Cancel
}

• self() returns the Pid of the current actor. The Pid is the handle others use to send it messages.
• send(pid, msg) enqueues msg in pid’s mailbox. If the mailbox is full, the behavior depends on the policy (§14.4).
• receive() takes the next message from the current actor’s mailbox. If there’s nothing, the fiber suspends until one arrives. Because it suspends, it’s a yield point and carries Cancel.

Msg is the concrete message type the actor receives. An actor handles a single message type. If you need to mix shapes, unify them with a sum type:

type ServerMsg
  = Ping(Pid[Pong])
  | Stop
  | Tick

The actor knows it’ll receive only one of those three constructors, and the exhaustive match on receive() guarantees you cover every case.

Pid[Msg]: typed handle

A Pid[Msg] is a mailbox identifier. It has a type, so the compiler doesn’t let you send a Notification message to a Pid[Task]. This is the strongest difference from Erlang: in Erlang, PIDs are untyped; in kaikai, they’re specific to the message type.

Like Fiber[T] from chapter 13, Pid[Msg] is tied to the scope that created it. You can’t store it in a record that outlives the nursery, return it from a function outside the standard family, or pass it between data structures that aren’t approved. The compiler rejects it. This closes the model: every PID has a known parent, and dies with it.

14.2 with_mailbox: give the current fiber a mailbox

The simplest way to start is to give a mailbox to the fiber you’re already in. with_mailbox installs the Actor[Msg] handler and hands control to its body:

import actor

fn main() : Unit / Console {
  with_mailbox {
    Actor.send(Actor.self(), "hello")
    Actor.send(Actor.self(), "world")
    Stdout.print(Actor.receive())
    Stdout.print(Actor.receive())
  }
}

Output:

$ kai run examples/ch14/01_with_mailbox.kai
hello
world

with_mailbox { ... } is a call with trailing-lambda syntax: the block in braces is the body that runs with the mailbox installed. Because with_mailbox passes no arguments to the body (zero-parameter lambda), the block needs no arrow or binder. Inside, Actor is the capability: Actor.self() returns the newly created mailbox’s Pid, Actor.send(pid, msg) enqueues, Actor.receive() takes the next one.

In this example the actor talks to itself. It’s the “hello world” of the model; the real exercise is communicating two distinct actors.

14.3 spawn_actor: start a new actor

To start an actor that runs in its own fiber:

import actor

fn worker() : Unit / Actor[String] + Console {
  let t1 = Actor.receive()
  Stdout.print("working: " ++ t1)
  let t2 = Actor.receive()
  Stdout.print("working: " ++ t2)
  let t3 = Actor.receive()
  Stdout.print("working: " ++ t3)
}

fn main() : Unit / Console + Spawn + Cancel + Actor[String] {
  with_mailbox {
    let pid = spawn_actor(() => worker())
    Actor.send(pid, "task-1")
    Actor.send(pid, "task-2")
    Actor.send(pid, "task-3")
    spawn.yield()
    spawn.yield()
    spawn.yield()
    spawn.yield()
  }
}

spawn_actor starts a new fiber, installs a mailbox on it, and returns the Pid so the parent can send it messages. The worker’s signature declares Actor[String]: it needs the effect to call Actor.receive().

Notice that main also has Actor[String] in its row. Why? Because Actor.send(pid, "task-1") is an invocation of an operation of the Actor[String] effect, and like every effect operation it requires the effect to be available in context. The with_mailbox in main provides that capability. The pid already identifies the destination mailbox; the handler only dispatches the operation.

The spawn.yield()s at the end give the scheduler a chance to run the worker. Without them, main would exit before the worker processed anything.

receive_timeout: receive with a deadline

Actor.receive() blocks: if the mailbox is empty, the fiber suspends until a message arrives, however long that takes. That’s what you want almost always, but sometimes waiting forever is precisely what you don’t want. A supervisor running a health check shouldn’t hang if the worker stopped responding; a client asking for something over the network wants to retry if nobody answers within 50 ms.

That’s what receive_timeout(d) is for: it receives from the mailbox, gives up after a Duration, and returns an Option:

import actor
import time

fn main() : Unit / Console + Spawn + Cancel + Clock + Actor[String] {
  with_mailbox {
    match receive_timeout(time.millis(10)) {
      Some(m) -> Stdout.print("received: " ++ m)
      None    -> Stdout.print("timeout: nobody answered")
    }
  }
}

Output:

$ kai run examples/ch14/06_receive_timeout.kai
timeout: nobody answered
received: pong

Some(msg) if a message arrived before the deadline, None if the deadline elapsed first. The Duration comes from time’s constructors (time.millis, time.seconds, time.minutes); because the deadline is measured against the clock, the signature gains the Clock effect. Having to match on the Option is the point: the compiler won’t let you forget the case where time ran out.

For the module’s full repertoire — spawn_actor_policy, the typed wrappers, the raw nanosecond op receive_timeout is built on — see kai doc actor.

14.4 Mailbox policies: what happens when it fills

By default, with_mailbox and spawn_actor create an unbounded mailbox: it never fills, messages pile up while they go unread. Reasonable to start, dangerous in practice: if a producer sends faster than a consumer processes, memory grows without bound.

For real cases, you pick a policy. The stdlib (module actor) exposes them as two sum types:

# Defined in stdlib/actor.kai, accessible via `import actor`.
pub type MailboxPolicy = Unbounded | Bounded(Int, Overflow)
pub type Overflow      = DropOldest | DropNewest | BlockSender

Bounded(capacity, on_full) gives a fixed-size mailbox. The on_full parameter decides what to do when a message arrives with no room:

• DropOldest: the oldest message is evicted, the new one enters. Useful for snapshots: only the latest state matters (telemetry, tick events, GPS).
• DropNewest: the new message is rejected, the mailbox stays as it was. Useful for “first wins” protocols (leader election, lock acquisition).
• BlockSender: the sender suspends until space frees up. Useful for backpressure: the producer slows down when the consumer can’t keep up. It’s a yield point, so a blocked sender can receive Cancel.raise().

import actor

fn main() : Unit / Console {
  with_mailbox_policy(Bounded(2, DropOldest)) {
    Actor.send(Actor.self(), "a")
    Actor.send(Actor.self(), "b")
    Actor.send(Actor.self(), "c")
    Stdout.print(Actor.receive())
    Stdout.print(Actor.receive())
  }
}

Output:

$ kai run examples/ch14/04_mailbox_policy.kai
b
c

The mailbox has capacity 2. We send a, b, c without reading anything. When c arrives, there’s no room, and DropOldest evicts a. The two reads recover b and c.

DropOldest and DropNewest don’t notify the sender that their message was dropped. If you need to know, use BlockSender (or design the protocol with an ack). The silence is deliberate: the policy expresses a global preference of the mailbox, not a per-message negotiation.

14.5 Request/reply pattern

The most common pattern between actors is to ask one of them for something and wait for the answer. Each side of the dialogue has its own message type: the client sends a Request and receives a Reply; the server receives Request and sends Reply. The Request includes the client’s Pid[Reply] so the server knows where to reply.

import actor

type Request = Query(String, Pid[Reply])
type Reply   = Answer(String)

fn server() : Unit / Actor[Request] + Actor[Reply] + Console {
  match Actor.receive() {
    Query(q, client) -> {
      Stdout.print("server: got '#{q}'")
      Actor.send(client, Answer("reply to '#{q}'"))
      server()
    }
  }
}

fn main() : Unit / Console + Spawn + Cancel + Actor[Reply] {
  with_mailbox {
    let s = spawn_actor(() => server())

    Actor.send(s, Query("two+two", Actor.self()))
    match Actor.receive() {
      Answer(r) -> Stdout.print("client: " ++ r)
    }
  }
}

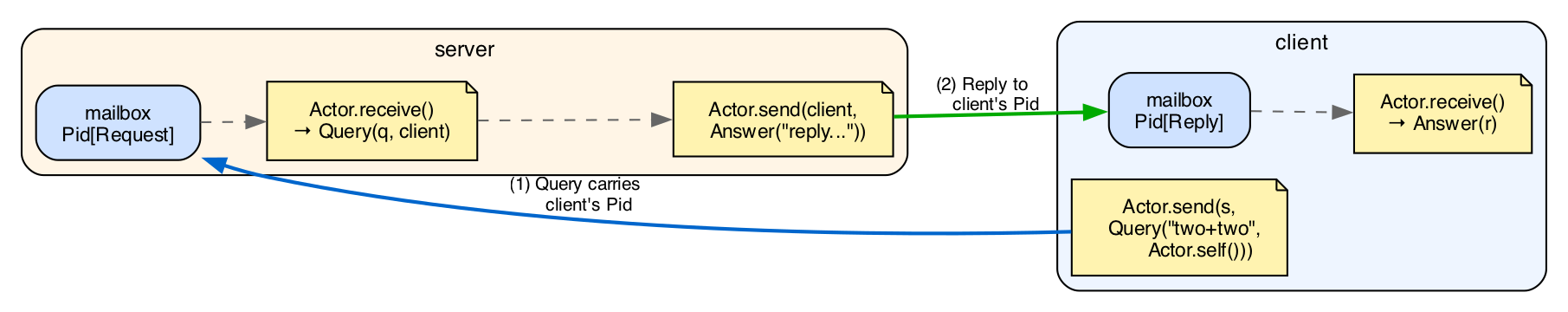

Figure 14.1 · Request/reply between two actors. The client holds a Pid[Reply] mailbox; the server holds a Pid[Request] mailbox. Arrow (1) carries the Query — which includes the client’s PID — into the server’s mailbox; arrow (2) returns the Answer to the client’s mailbox. Two typed mailboxes, two messages, one round trip.

A few things worth noting about the structure:

• Two distinct types, Request and Reply, each with its own mailbox. The server declares Actor[Request] + Actor[Reply] in its row: it receives Request from its own mailbox and sends Reply to the client’s mailbox. The client declares only Actor[Reply]: it has a Reply mailbox, not a Request one. The types tell you exactly which mailbox is which.
• Query includes the return Pid[Reply]. Without it, the server doesn’t know whom to reply to. The Pid’s type guarantees that only Reply messages can be sent to it.
• The server recurses after processing the message. Without that recursion, the server would process a single message and exit. Tail recursion compiles to a loop (chapter 6), so the actor can run indefinitely without blowing the stack.

This replaces, in practical terms, synchronous API calls: you ask, wait, continue. The difference is that the “server” can be serving multiple clients at once, its internal state is encapsulated, and the type system guarantees that no client is waiting for an answer of the wrong type.

14.6 Supervision: links and monitors

In BEAM, actors are supervised with links (bidirectional) and monitors (unidirectional). When an actor crashes, the actors watching it find out and decide what to do.

kaikai ships the same model, expressed as two effects living in stdlib/effects/concurrent.kai, next to Spawn and Actor[Msg]:

pub effect Link {
  link(peer: Pid[Nothing]) : Unit
}

pub effect Monitor {
  monitor(target: Pid[Nothing]) : Pid[Nothing]
  demonitor(ref: Pid[Nothing])  : Unit
}

Pid[Nothing] is the PID seen without its message type: Nothing is the empty type, so such a PID can receive nothing at all. It’s the way to say “here I only care about the actor’s identity, not its protocol” — because link and monitor neither send nor receive messages, they only register observation on the actor’s life.

Links: bidirectional

Link.link(pid) declares that the current actor and pid are bound: if either fails, the other receives Cancel.raise(). It’s the pattern for two actors that depend on each other symmetrically (a worker and its queue, two sides of a handshake). It is not what you want for “supervisor watches worker”: that’s the monitor case.

Monitors: unidirectional

Monitor.monitor(pid) declares that the current actor wants to know when pid ends, without coupling its own life to the observed actor’s. It returns a reference — another Pid[Nothing] — that you hand to demonitor later if you want to stop watching.

When the observed one dies, the notice reaches you through the ordinary mailbox: the runtime pushes the dead actor’s pid there and you read it with the same Actor.receive() as any other message. That is all a monitor says today: this actor terminated. It doesn’t say how.

Learning how it died: Link + trap exit

For the cause you go the other way. Spawn exposes set_trap_exit(true), which tells a fiber that a linked peer’s death should arrive as a notice rather than take it down — Erlang’s process_flag(trap_exit, true) — and that notice does distinguish: "Normal" or "Crashed" lands in the mailbox.

# examples/ch14/07_trap_exit.kai (excerpt)
fn supervise() : Unit / Actor[String] + Spawn + Console + Link + Cancel = {
  spawn.set_trap_exit(true)
  let me = Actor.self()

  let _ = spawn.spawn(() => with_mailbox { child_ok(me) })
  Stdout.print("a child died: " ++ Actor.receive())

  let _ = spawn.spawn(() => with_mailbox { child_crash(me) })
  Stdout.print("a child died: " ++ Actor.receive())
}

$ kai run examples/ch14/07_trap_exit.kai
a child died: Normal
a child died: Crashed

The child binds itself with Link.link(parent) and then either returns cleanly or calls Cancel.raise(). Without set_trap_exit, the first death would cancel the supervisor and the second would never be seen.

Worth knowing: that String is a v1 simplification. The language design (docs/actors.md) specifies something richer — a MonitorDown(ref, cause) with cause = Normal | Crashed(String) | Cancelled, travelling through the actor’s typed mailbox as one more variant of your own message type:

# The specified shape, not implemented yet.
type SupervisorMsg
  = Work(Task)
  | Down(MonitorDown)

When that lands, the cause stops being a string and becomes a value you can match on. Until then the two routes above are what you have: the monitor tells you who, trap exit tells you how.

When to pick each

• Without Link or Monitor, when the natural flow is for the actor itself to report how it went before exiting. It sends a Done(...) or Failed(...) message to its supervisor and exits cleanly. The supervisor sees it like any other message. That’s the pattern the case study in §14.7 uses.
• Monitor, when the supervisor needs to react to terminations the actor doesn’t control: crashes, cancellation from outside, panics. The supervisor stays alive and decides.
• Link, when two actors form a unit and it doesn’t make sense for one to survive without the other.

The §14.7 pattern that follows uses explicit notification — not only because it’s the simplest, but because it’s the only one where the supervisor gets the reason in its own terms. A "Crashed" tells you the fiber unwound; a Failed("division by zero at (30, 0)") tells you what happened. For nearly everything you’ll write, having the actor report how it went before exiting remains better design than inspecting its corpse.

14.7 Case study: supervisor with retries

We close with a complete program: a supervisor that launches a worker with a batch of tasks, watches whether the batch succeeded, and retries with an alternate batch if it failed.

import actor

#[derive(Show)]
type BatchResult
  = Done(Int)             # successful total
  | Failed(String)        # reason for the failure

fn process(tasks: [(Int, Int)], acc: Int) : BatchResult {
  match tasks {
    []                 -> Done(acc)
    [(a, 0), ..._]     -> Failed("division by zero at (#{a}, 0)")
    [(a, b), ...rest]  -> process(rest, acc + (a / b))
  }
}

fn worker(supervisor: Pid[BatchResult], tasks: [(Int, Int)])
    : Unit / Actor[BatchResult] + Console {
  let r = process(tasks, 0)
  Stdout.print("worker: batch ended as #{r}")
  Actor.send(supervisor, r)
}

fn attempt(me: Pid[BatchResult], batch: [(Int, Int)])
    : BatchResult / Console + Spawn + Cancel + Actor[BatchResult] {
  let _ = spawn_actor(() => worker(me, batch))
  Actor.receive()
}

fn supervisor() : Unit / Console + Spawn + Cancel + Actor[BatchResult] {
  with_mailbox {
    let me = Actor.self()
    let first_batch  = [(10, 2), (20, 4), (30, 0)]
    let second_batch = [(10, 2), (20, 4), (30, 5)]
    match attempt(me, first_batch) {
      Done(total)     -> Stdout.print("supervisor: success on first try, total=#{total}")
      Failed(reason)  -> {
        Stdout.print("supervisor: first try failed (#{reason}), retrying")
        match attempt(me, second_batch) {
          Done(total)     -> Stdout.print("supervisor: success on second try, total=#{total}")
          Failed(reason)  -> Stdout.print("supervisor: second try failed too (#{reason}), giving up")
        }
      }
    }
  }
}

fn main() : Unit / Console + Spawn + Cancel {
  supervisor()
}

Output:

$ kai run examples/ch14/05_supervisor.kai
worker: batch ended as Failed(division by zero at (30, 0))
supervisor: first try failed (division by zero at (30, 0)), retrying
worker: batch ended as Done(16)
supervisor: success on second try, total=16

Three pieces worth commenting on:

• process doesn’t touch the actor system. It’s pure list logic: pattern match, recursion, returns a value. That means process is completely testable without starting fibers. The actor layer lives only in worker, attempt, and supervisor.
• attempt separates a concern. Before extracting it, the second-attempt code was inline inside the first match. Pulling that logic into its own function makes the “spawn + receive” pattern explicit.
• The supervisor decides policy. The worker is blind to the decision: it only reports. Changing the policy from “two tries with different data” to “three tries with exponential backoff” touches one function. That separation is the real benefit of the model.

What’s missing for this to be production-ready? A few things:

• Per-attempt timeout. Today if the worker hangs, the supervisor hangs too, because attempt ends in an Actor.receive() that blocks with no deadline. Swapping that receive for receive_timeout (§14.3) hands the supervisor a None to react to instead of waiting indefinitely.
• Cancel the worker if the supervisor gives up. If we say “I give up” while the worker is still processing, we want the worker to end too. With Link.link(worker) after spawn, the supervisor’s decision to return cancels the worker automatically. The explicit alternative is to add a Stop message to the worker’s protocol and send it before giving up.
• Persistent logging. Instead of Stdout.print, send to a logger actor with its own bounded mailbox (Bounded(1024, DropOldest)).

Each is an afternoon’s work. But the foundation is there: three actors, two message types, a type system that guarantees mailboxes are respected.

14.8 Philosophy: actors are a library

If you want to keep two things from this chapter, let it be these:

1. Actors are not language primitives. They’re a library built on the Actor[Msg] effect, which is in turn an ordinary effect declaration. The stdlib provides with_mailbox, spawn_actor, the policies. The library’s code is there for you to read. If you ever wonder “what does spawn_actor do underneath”, the answer is a handle and a spawn.spawn.

2. Every actor has a fixed message type. The compiler guarantees you don’t send the wrong message to the wrong mailbox. Pid[Msg] is typed, not a string. And so an actor system in kaikai is more statically verifiable than its equivalent in Erlang.

The most important consequence of the first idea: when you want a supervision pattern the stdlib doesn’t provide, you can write it. The syntax hides nothing: handle, receive, send. Any actor pattern you’ve seen in Erlang, Akka, or any other actor framework should be expressible as an ordinary function in kaikai with these pieces.

Exercises

14.1. Modify the §14.3 example so the worker processes five tasks instead of three. What happens if you reduce the parent’s spawn.yield()s? What’s the minimum that lets all tasks get processed?

14.2. Take BoundedDropOldest from §14.4 and change it to BoundedDropNewest. What’s the expected output? Justify by reasoning about which messages remain in the mailbox as each send arrives.

14.3. In §14.5’s request/reply pattern, the client sends one question and leaves. If you wanted a client that asks five questions in series, what would you change? And if you wanted to fire them all at once and receive replies as they come in (concurrently, not in parallel: the scheduler interleaves them on the same thread)? Hint: you’d need to open several fibers in a nursery or group replies with a correlation id.

14.4. In the §14.7 case study, the supervisor retries twice. Generalize: write a function with_retries[T, e](n: Int, attempt: () -> BatchResult / e) : BatchResult / e that retries n times before giving up.

14.5. A “logger” actor receives Info(String) and prints them to stdout. Design its message type, its signature, and an appropriate with_mailbox_policy. Justify the choice of policy by considering: what happens if the producer sends faster than it can be printed?
